Model No: 52H180

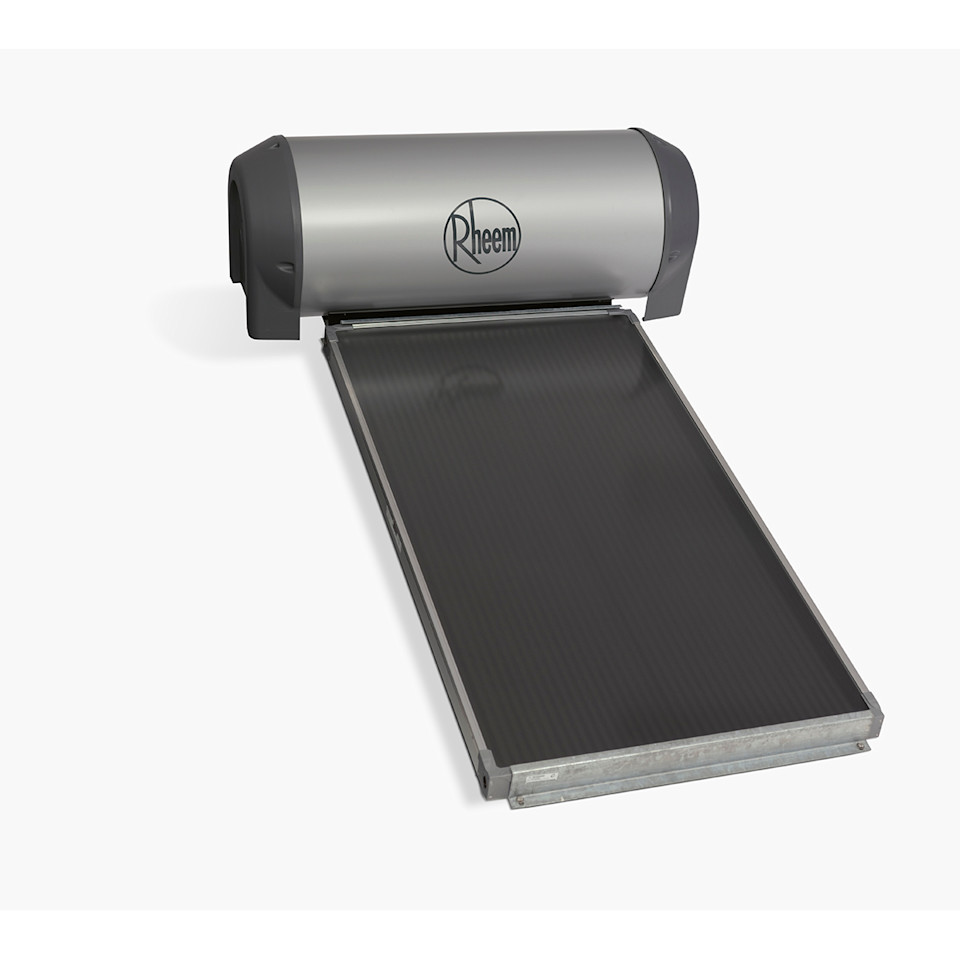

Rheem Premier Hiline® 52H180 Stainless Steel Solar Water Heater
Designed for areas that experience frost or snow. The Rheem Premier Hiline uses the highly efficient heat transferring properties of a special anti-freeze fluid to transfer the absorbed energy to heat the water indirectly. With an ‘indirect system’ water does not pass through the collector panels, instead the anti-freeze mixture is circulated from the collectors through a stainless steel heat exchanger, transferring the heat into the water.
The benefit of this ‘indirect’ heat exchange process is that the system can be used confidently in frost areas, without risking damage to the system; it offers protection against damage in freezing conditions.
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Features
Capacity
No. of People
Warranty
- 180L tank capacity
- Single roof mounted collector
- Complete Frost Protection
- Electric element or continuous flow gas booster
- Stainless Steel Cylinder
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Warranty
Warranty details on a system with SPA2000 collectors^:
- 7 years on cylinder supply
- 5 years on collectors supply
- 3 years cylinder labou
- 1 year collector labour
- 1 year parts supply and labour
Warranty details on a system with NPT200 collectors*:
- 7 years cylinder and collector supply
- 3 years cylinder and collector labour
- 1 year parts supply and labour
Warranty details on a system with L or CSA20007 collector*:
10 years cylinder and collector supply
5 years cylinder and collector labour
5 years parts supply and labour
^The warranty periods above apply to installations in a single-family domestic dwelling only. For further details, please refer to the Owner’s Guide available in the Downloads tab on this page. Without limiting the above periods, a 5-year whole-of-product warranty applies where a rebate has been received under Solar Victoria’s Solar Homes Program for installations from 1 July 2023. For further details, call Rheem Australia on 131 031.
*The warranty periods above apply to installations in a single-family domestic dwelling only. For further details, please refer to the Owner’s Guide available in the Downloads tab on this page.
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Rheem Premier Hiline 52H180 Product Specifications
| Storage Cylinder | Units | 52H180 | 52H300 |
|---|---|---|---|
| Capacity | litres | 177 | 294 |
| Outside Dimensions | mm | 571 x 1215 | 571 x 1905 |
| Weight - Full | kg | 230 | 373 |
| Weight - Empty | kg | 53 | 79 |
| Max Inlet Pressure | kPa | 550 | 550 |
| Insulation - Thickness | mm | 47 | 47 |
| Total System | |||
| Dimensions - Area on roof | mm | 2562 x 1615 | 2562 x 2494 |
| No. of Collectors (Typical) | 1 | 2 | |
| Weight - Full | kg | 277 | 455 |
| Weight - Empty | kg | 98 | 157 |
