Model No: 52C300

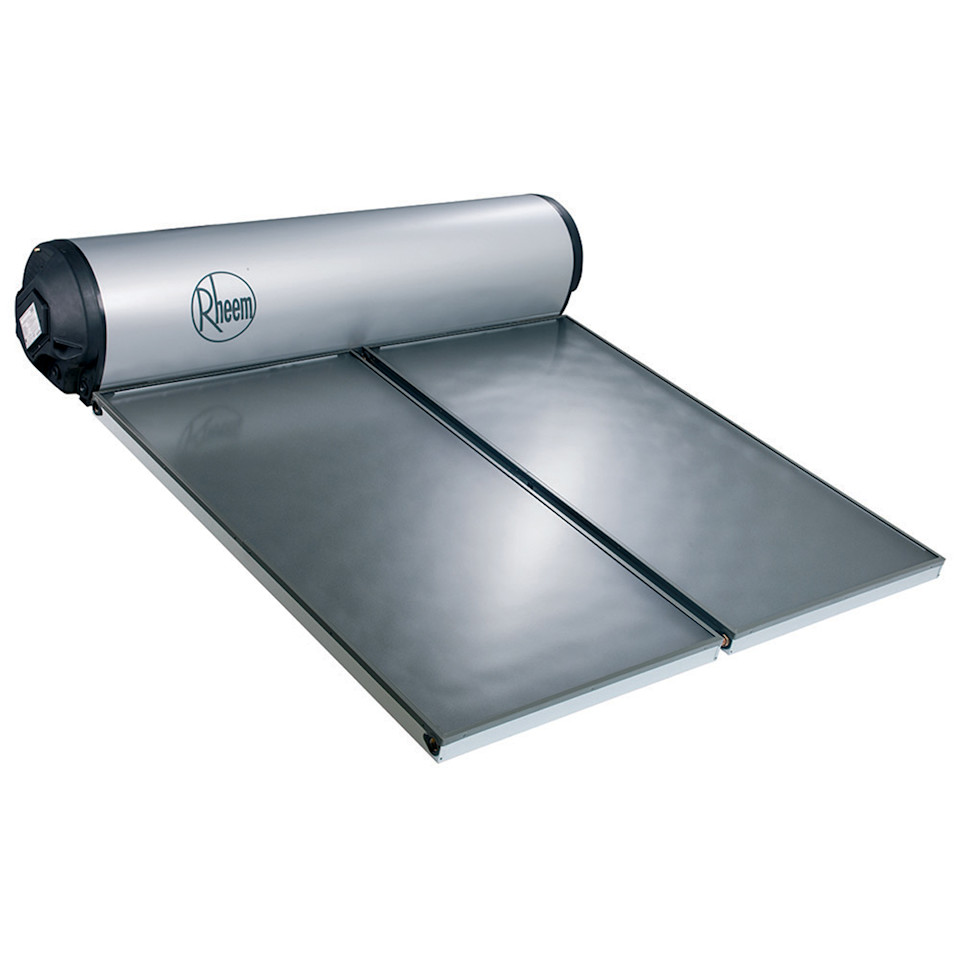

Rheem Premier Hiline® 52C300 VE Solar Water Heater
The Rheem Premier Hiline® 52C300 is an indirect solar water heater designed for environments prone to frost and freezing conditions, and also for areas with poor water chemistry.
Features
Capacity
No. of People
Warranty
- 300L tank capacity is suitable for 2-5 people
- Complete Frost Protection
- Reduces energy use1,2
- 2 x NPT200 collectors - to "collect" energy from the sun
- Booster – choice of 6-Star continuous flow gas boost or electric element back up
Energy reduction of up to 60% based on Australian Government Approved TRNSYS simulation modelling and apply when replacing an electric water heater with a Rheem solar water heater in zone 3.
Any financial savings will vary depending upon type of Rheem Solar system installed, orientation and inclination of the solar collectors, type of water heater being replaced, hot water consumption and fuel tariff. Maximum financial savings off your hot water bill are achievable when replacing an electric water heater on continuous tariff.
Warranty
Warranty details*:
- 5 year cylinder and collector supply
- 3 years cylinder labour
- 1 year collector labour
- 1 year parts supply and labour
*The warranty periods above apply to installations in a single-family domestic dwelling only. For further details, please refer to the Owner’s Guide available in the Downloads tab on this page. Without limiting the above periods, a 5-year whole-of-product warranty applies where a rebate has been received under Solar Victoria’s Solar Homes Program for installations from 1 July 2023. For further details, call Rheem Australia on 131 031.
Specifications
| Units | 52C300/2NPT | 52C300/2NPT-G | |
|---|---|---|---|
| Storage Capacity | litres | 300 | 300 |
| Solar Collectors | 2 | 2 | |
| Booster Type | Electric | Gas - remote | |
| Boost Capacity | litres | 150 | 27/min |
| People Per Household | 2-5 | 2-5 | |
| Dimensions & Specifications | |||
| Height (A) | mm | 2475 | 2475 |
| Width (B) | mm | 2425 | 2425 |
| Depth (C) | mm | 510 | 510 |
| Weight Empty - Tank | kg | 109 | 109 |
| Weight Full - Tank | kg | 398 | 398 |
| Weight Empty - Solar Collectors | kg | 66 | 66 |
| Weight Full - Solar Collectors | kg | 70 | 70 |
