Model No: 52L300

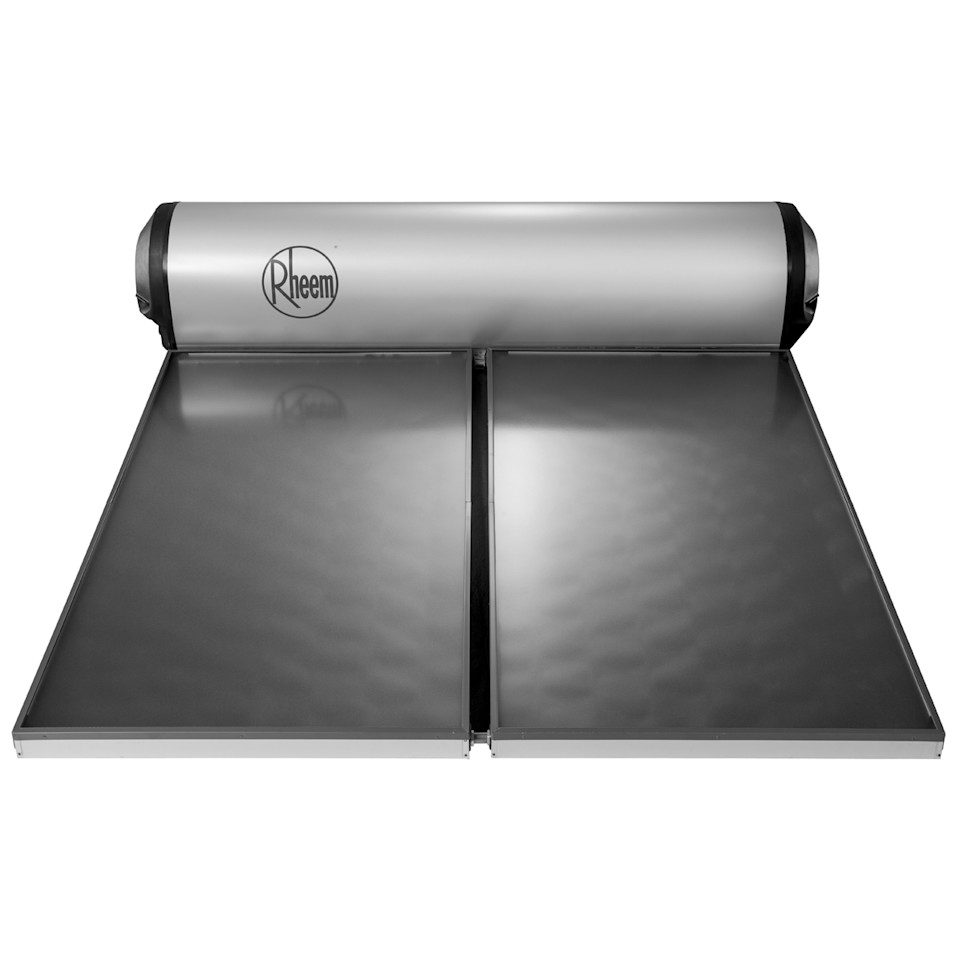

Rheem Hiline® 52L300 Stainless Steel solar water heater
If your home is in a temperate or tropical location not subject to frost and you have good water chemistry, then the Rheem 52L Series system is ideal.
The 52L Series system directly heats the water as it thermosiphons through the collectors and rises back into the storage tank.
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Features
Capacity
No. of People
Warranty
- Suitable for temperate or tropical locations
- Gas or electric boost options – for days when the sun doesn't shine.
- A choice of four contemporary COLORBOND® steel colours.
- Available with 2 x NPT200 or 2 x L or 2 x CSA2007 collector – to “collect” energy from the sun.
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Warranty
On a system with NPT200 collectors:
- 7 year cylinder and collector supply
- 3 year cylinder and collector labour
- 1 year parts supply and labour*
On a system with L or CSA2007 collectors:
- 10 years cylinder and collector supply*
- 5 years cylinder and collector labour*
- 5 years parts supply and labour*
*Applies to an installation in a single-family domestic dwelling only. For further information on warranty, please refer to the owner's guide. Warranty conditions apply.
Rheem Stainless Steel water heaters are not recommended for installation in some areas with poor water quality. Refer to the Stainless Steel Suitability Map for your state to see if Stainless Steel is suitable for your home.
Specifications
| Units | 52L180 | 52L300 | |
|---|---|---|---|
| Storage Cylinder | |||
| Capacity | Litres | 180 | 305 |
| Outside Dimensions | mm | 1215 | 1905 |
| Weight - Full | kg | 228 | 377 |
| Weight - Empty | kg | 48 | 72l |
| Max inlet pressure | kPa | 550 | 550 |
| Insulation - Thickness | mm | 47 | 47 |
| Total System | |||
| Dimensions - Area on Roof | mm | 2562 x 1615 | 2562 x 2494 |
| No. of collectors (Typical) | 1 | 2 | |
| Weight - Full | kg | 267 | 454 |
| Weight - Empty | kg | 85 | 145 |
