Model No: 52D300

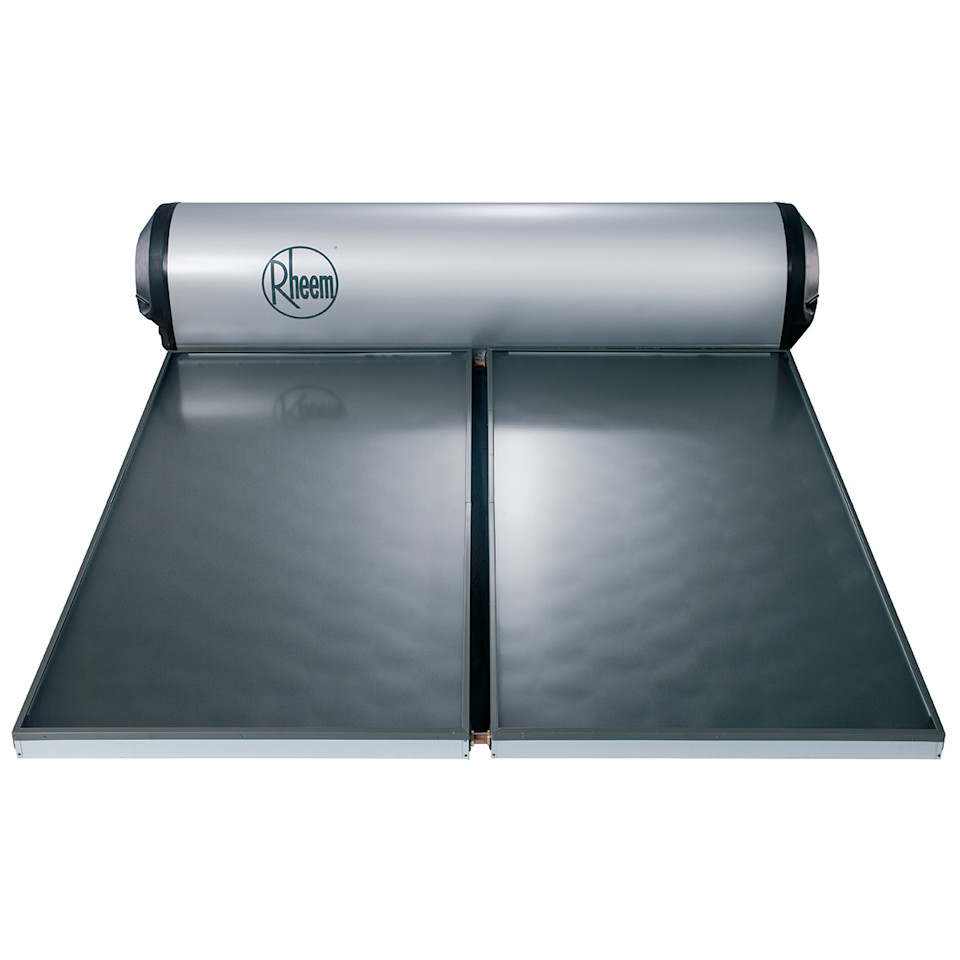

Rheem Hiline® 52D300 VE Solar Water Heater
The Rheem Hiline® solar hot water heater is ideal for warmer climates and areas with good water chemistry. It's a great option when ground access is limited as the storage tank and solar collectors are mounted together on the roof.
Features
Capacity
No. of People
Warranty
- 300L tank capacity is suitable for 2-5 people
- 2 x NPT200 collectors — to "collect" energy from the sun
- Available with gas or electric boost - for days when the sun doesn't shine
- Reduces energy use1,2
1Energy reduction based on Australian Government Approved TRNSYS simulation modelling and apply when replacing an electric water heater with a Rheem solar water. 2Any financial savings will vary depending upon type of Rheem Solar system installed, orientation and inclination of the solar collectors, type of water heater being replaced, hot water consumption and fuel tariff. Maximum financial savings off your hot water bill are achievable when replacing an electric water heater on continuous tariff.
Warranty
Warranty:
- 5 years cylinder and collector supply*
- 3 years cylinder labour*
- 1 year collector labour
- 1 year parts supply and labour
Warranty conditions apply.
*Applies to an installation in a single-family domestic dwelling only.
Specifications
| Units | 52D180 | 52D300 | |
|---|---|---|---|
| Storage Cylinder | |||
| Capacity | Litres | 180 | 300 |
| Length | mm | 1595 | 2410 |
| Width | mm | 510 | 510 |
| Weight - Full | kg | 241 | 390 |
| Weight - Empty | kg | 61 | 90 |
| Max inlet pressure | kPa | 550 | 550 |
| Total System | |||
| Area on Roof | mm | 2480 x 1595 | 2480 x 2410 |
| No. of collectors | 1 | 2 | |
| Weight - Full | kg | 282 | 472 |
| Weight - Empty | kg | 100 | 168 |
