Model No: 511410

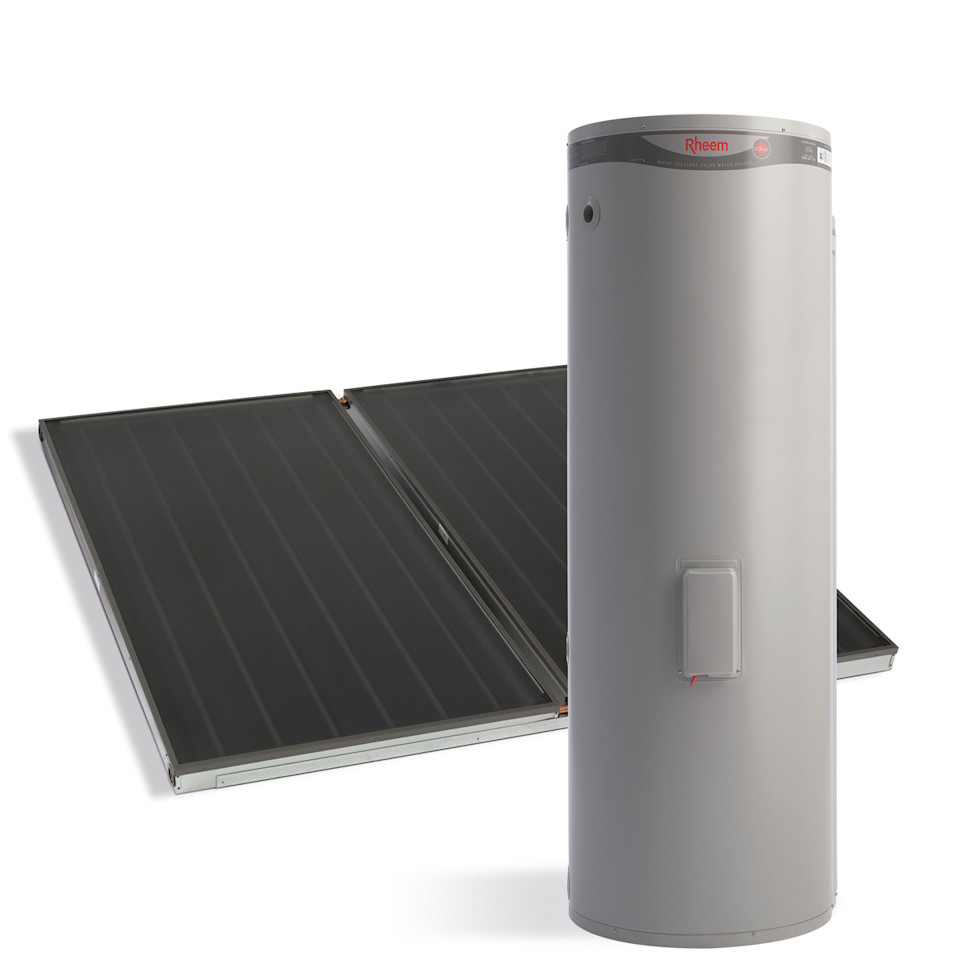

Rheem Loline® 410L Solar Water Heater
These efficient collectors help reduce the production of greenhouse gas emissions. And, to ensure you have hot water all year round, Rheem Loline® Solar water heaters can be electric or gas boosted, with automatic electronic controls.
If you need an emergency replacement, you can run this water heater on its electric boost until your collectors are installed.
Features
Capacity
No. of People
Warranty
- 410L tank capacity
- The tank has a back-up electric booster to keep you in hot water when the sun isn't shining. Alternatively, you can choose to have a Rheem solar continuous flow gas water heater installed with the tank to provide boosting
- Reduces energy use1,2
- Limited frost protection – Electronically controlled circulation of water prevents frost damage
- Suitable with NPT200 or LCS collectors
- Energy reduction based on Australian Government Approved TRNSYS simulation modelling and apply when replacing an electric water heater with a Rheem solar water heater.
- Any financial savings will vary depending upon type of Rheem Solar system installed, orientation and inclination of the solar collectors, type of water heater being replaced, hot water consumption and fuel tariff. Maximum financial savings off your hot water bill are achievable when replacing an electric water heater on continuous tariff.
Warranty
Warranty details*:
- 5 year cylinder
- 5 year collector(s)
- 3 year labour on cylinder
- 1 year parts including labour
*The warranty periods above apply to installations in a single-family domestic dwelling only. For further details, please refer to the Owner’s Guide available in the Downloads tab on this page. Without limiting the above periods, a 5-year whole-of-product warranty applies where a rebate has been received under Solar Victoria’s Solar Homes Program for installations from 1 July 2023. For further details, call Rheem Australia on 131 031.
Specifications
| Storage Cylinder | Units | 511410/3NPT | 511410/3LCS* |
|---|---|---|---|
| Storage Capacity | litres | 410 | 410 |
| SoIar Collectors | 3 | 3 | |
| Booster Type | Electric | Electric | |
| Boost Capacity | litres | 220 | 220 |
| People Per Household | 3-6 | 3-6 | |
| Dimensions & Specifications | |||
| Height (A) | mm | 1840 | 1840 |
| Width (B) | mm | 690 | 690 |
| Depth (C) | mm | 730 | 730 |
| Cold In (D) | mm | 81 | 81 |
| Hot Out (E) | kg | 1519 | 1519 |
| Weight Empty – Tank | kg | 111 | 111 |
| Weight Full – Tank | kg | 521 | 521 |
| Weight Empty – Solar Collectors | kg | 117 | 117 |
| Weight Full – Solar Collectors | kg | 123 | 123 |
*LCS Collectors are only available for installation in zones 3 & 4.
